Home > Hose and Tubing > Fleet/Truck Hose >

R14 PTFE Hose

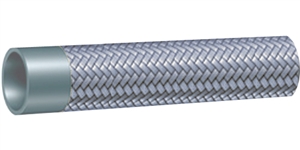

R14 PTFE Hose

SAE 100R14A

Recommended for steam, solvents, fuels, hydraulic fluids, most chemicals and acids. Vibration absorption and high temperature and pressure ranges make PTFE hose extremely versatile.

PTFE inner tube.
Stainless steel (type 304) outer cover.
Temperature range: -65° to +450° Fahrenheit.

Meets all requirements of SAE 100R14A (below price table).

Use with T-Series Hose Fittings or R14 Reusable Hose Fittings

Please select your size and quantity below.

Item# Item Name Cat. Price Web Price Qty Add

R14-04 R14-04 | 3/16" SAE 100R14A PTFE Hose (by the foot) $2.66 $2.53

R14-04-COIL R14-04-COIL | 100 feet of 3/16” SAE 100R14A PTFE Hose $252.00 $239.40

R14-05 R14-05 | 1/4" SAE 100R14A PTFE Hose (by the foot) $3.09 $2.94

R14-05-COIL R14-05-COIL | 100 feet of 1/4” SAE 100R14A PTFE Hose $295.00 $280.25

R14-06 R14-06 | 5/16" SAE 100R14A PTFE Hose (by the foot) $3.42 $3.25

R14-06-COIL R14-06-COIL | 100 feet of 5/16” SAE 100R14A PTFE Hose $324.00 $307.80

R14-07 R14-07 | 3/8" SAE 100R14A PTFE Hose (by the foot) $4.52 $4.29

R14-07-COIL R14-07-COIL | 100 feet of 3/8” SAE 100R14A PTFE Hose $431.00 $409.45

R14-08 R14-08 | 13/32" SAE 100R14A PTFE Hose (by the foot) $4.47 $4.25

R14-08-COIL R14-08-COIL | 100 feet of 13/32” SAE 100R14A PTFE Hose $426.00 $404.70

R14-10 R14-10 | 1/2" SAE 100R14A PTFE Hose (by the foot) $5.39 $5.12

R14-10-COIL R14-10-COIL | 100 feet of 1/2” SAE 100R14A PTFE Hose $513.00 $487.35

R14-12 R14-12 | 5/8" SAE 100R14A PTFE Hose (by the foot) $6.68 $6.35

R14-12-COIL R14-12-COIL | 100 feet of 5/8” SAE 100R14A PTFE Hose $634.00 $602.30

R14-14 R14-14 | 3/4" SAE 100R14A PTFE Hose (by the foot) $9.42 $8.95

R14-14-COIL R14-14-COIL | 100 feet of 3/4” SAE 100R14A PTFE Hose $897.00 $852.15

R14-16 R14-16 | 7/8" SAE 100R14A PTFE Hose (by the foot) $9.62 $9.14

R14-16-COIL R14-16-COIL | 100 feet of 7/8” SAE 100R14A PTFE Hose $916.00 $870.20

R14-18 R14-18 | 1" SAE 100R14A PTFE Hose (by the foot) $15.67 $14.89

R14-18-COIL R14-18-COIL | 100 feet of 1” SAE 100R14A PTFE Hose $1,492.00 $1,417.40

Check the items you wish to purchase, then click

Technical Specifications:

Item#	Inside Diameter	Outside Diameter	Maximum Working Pressure)	Minimum Burst Pressure	Minimum Bend Radius
R14-04	3/16"	.30"	3,000 psi	12,000 psi	2"
R14-05	1/4"	.38"	3,000 psi	12,000 psi	3"
R14-06	5/16"	.44"	2,500 psi	10,000 psi	4"
R14-07	3/8"	.52"	2,000 psi	8,000 psi	5"
R14-08	13/32"	.54"	2,000 psi	8,000 psi	5"
R14-10	1/2"	.63"	1,500 psi	6,000 psi	6-1/2"
R14-12	5/8"	.76"	1,200 psi	4,800 psi	7-1/2"
R14-14	3/4"	.89"	1,000 psi	4,000 psi	8-1/2"
R14-16	7/8"	1.03"	1,000 psi	4,000 psi	9"
R14-18	1"	1.22"	1,000 psi	4,000 psi	12"
