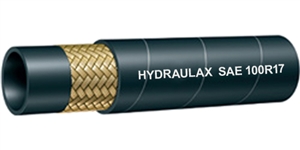

R17 Hydraulic Hose (3,000 psi)Recommended for high pressure hydraulic oil lines. Meets or exceeds all requirements of SAE 100R17
- Black, oil resistant Nittrile (BTR) tube.
- Two braids of high tensile steel wire reinforcement (one braid, sizes -04 and -06)
- Oil and abrasion resistant, black Neoprene (CR) cover for long wear.
- Temperature range: -40° to +212° Fahrenheit.
- No skiving required.
SAE 100R17 Hose Specifications
Item# |
Inner Diameter |
Outer Diameter |
Maximum Working Pressure (psi) |
Minimum Burst Pressure (psi) |
Minimum Bend Radius |
Reel Length* |
R17-04 |
1/4" |
0.55" |
3,000 |
12,000 |
2" |
500' |
R17-06 |
3/8" |
0.67" |
3,000 |
12,000 |
2-1/2" |
500' |
R17-08 |
1/2" |
0.81" |
3,000 |
12,000 |
3-1/2" |
350' |
R17-10 |
5/8" |
0.93" |
3,000 |
12,000 |
4" |
520' |
R17-12 |
3/4" |
1.07" |
3,000 |
12,000 |
4-3/4" |
400' |
R17-16 |
1" |
1.37" |
3,000 |
12,000 |
6" |
200' |
* Reel may not contain one continuous length of hose.
This hose is suitable for hydraulic fluids on mineral oil
and synthetic oil basis (HL, HLP, HLPD, HVLP), oil-water-emulsions (HFAE, HFAS,
HFB), water-glycol liquids (HFC), vegetable and mineral oil based lubricants,
cooling water, and compressed air. Also generally suitable for biologically
degradable hydraulic liquids (HETG, HEPG, HEES) however limited by fluid additives.
Not suitable for hydraulic fluids on phosphate ester basis
(HFD).
|
