The layline of your hydraulic hose gives you a lot of information about your specific hose-- Think of it like the sidewall of your tire.
When you’re looking to replace a hydraulic hose, this information enables us to ensure that you get the right for your needs. Having this information when calling or placing your order online will speed up the process and eliminate some confusion in choosing the right hose.

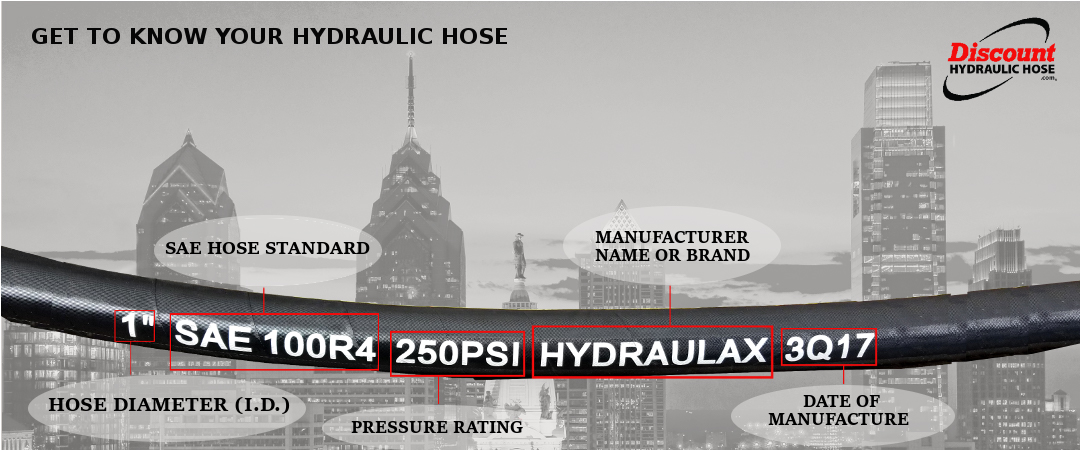

Starting at the left, the hose should have printed on it the I.D. or Inside Diameter of the hose. This is the area fluid will pass through, so in this example above, you have a 1" inside diameter for fluid to flow.
The next part, and possibly one of the most critical parts of the hose, is the SAE spec or standard. SAE, the Society of Automotive Engineers has created a series of specifications that relate to hydraulic hoses, and their construction, pressure rating, etc. This information stamped on the hose tells us what standard your hose is made to, and we carry a wide range of SAE standard hoses, such as SAE 100R4 as shown in the photo. SAE 100R4 is a suction hose, low pressure, usually made of one or more piles of woven or braided textile fibers. That 100R4 designation gives us this information. (more on SAE specs can be found here)
Next up is the pressure rating of the hose, usually expressed in PSI. A hose may have two numbers, such as 4,000/12,000 which usually indicates a Working Pressure/Burst Pressure. Hydraulic hoses are typically made with a 4:1 safety factor built in.
A brand name is commonly found on the layline of the hose as well. In this example, our private labeled brand, Hydraulax is found on the hose. This information is useful when trying to find crimp specifications or data about the manufacturer of the hose.
Finally, you will find the date of manufacture. This is expressed in which quarter of the year the hose was made, followed by the two digit year. Hydraulic hose has a shelf life on average of 10 years. We are always refreshing our stock, and typically no hose in our warehouse is more than 2 - 3 years old. Over time, hoses will break down by just sitting on a shelf being exposed to the elements. It is not recommended to install hoses that have a 10 years old or older.
Your hose may have additional data, such as an MSHA (Mine Safety and Health Administration) indication, meaning it is approved for use in Mining applications and features a flame resistant cover.
