Hydraulic Hose HYDRAULIC HOSE
.com ®

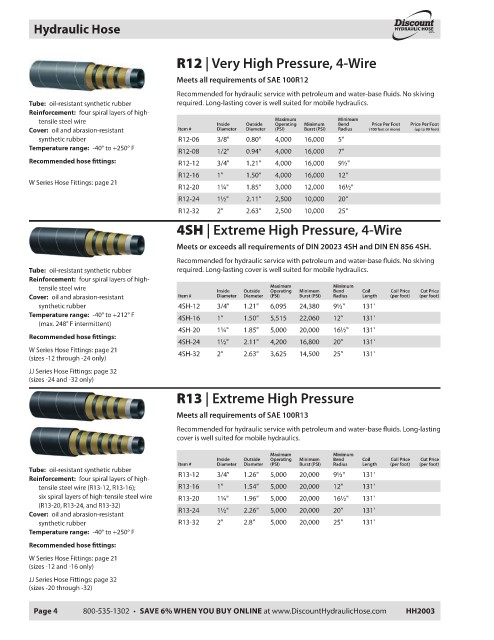

R12 | Very High Pressure, 4-Wire

Meets all requirements of SAE 100R12
Recommended for hydraulic service with petroleum and water-base fl uids. No skiving
Tube: oil-resistant synthetic rubber required. Long-lasting cover is well suited for mobile hydraulics.
Reinforcement: four spiral layers of high-
tensile steel wire Maximum Minimum
Inside Outside Operating Minimum Bend Price Per Foot Price Per Foot
Cover: oil and abrasion-resistant Item # Diameter Diameter (PSI) Burst (PSI) Radius (100 feet or more) (up to 99 feet)
synthetic rubber R12-06 3/8" 0.80" 4,000 16,000 5"
Temperature range: -40° to +250° F
R12-08 1/2" 0.94" 4,000 16,000 7"
Recommended hose fi ttings: R12-12 3/4" 1.21" 4,000 16,000 9½"

R12-16 1" 1.50" 4,000 16,000 12"
W Series Hose Fittings: page 21
R12-20 1¼" 1.85" 3,000 12,000 16½"
R12-24 1½" 2.11" 2,500 10,000 20"
R12-32 2" 2.63" 2,500 10,000 25"

4SH | Extreme High Pressure, 4-Wire

Meets or exceeds all requirements of DIN 20023 4SH and DIN EN 856 4SH.
Recommended for hydraulic service with petroleum and water-base fl uids. No skiving
Tube: oil-resistant synthetic rubber required. Long-lasting cover is well suited for mobile hydraulics.
Reinforcement: four spiral layers of high-
tensile steel wire Maximum Minimum
Inside Outside Operating Minimum Bend Coil Coil Price Cut Price
Cover: oil and abrasion-resistant Item # Diameter Diameter (PSI) Burst (PSI) Radius Length (per foot) (per foot)
synthetic rubber 4SH-12 3/4" 1.21" 6,095 24,380 9½" 131'
Temperature range: -40° to +212° F
4SH-16 1" 1.50" 5,515 22,060 12" 131'
(max. 248° F intermittent)
4SH-20 1¼" 1.85" 5,000 20,000 16½" 131'
Recommended hose fi ttings:
4SH-24 1½" 2.11" 4,200 16,800 20" 131'
W Series Hose Fittings: page 21 4SH-32 2" 2.63" 3,625 14,500 25" 131'
(sizes -12 through -24 only)
JJ Series Hose Fittings: page 32
(sizes -24 and -32 only)

R13 | Extreme High Pressure

Meets all requirements of SAE 100R13
Recommended for hydraulic service with petroleum and water-base fl uids. Long-lasting
cover is well suited for mobile hydraulics.

Maximum Minimum
Inside Outside Operating Minimum Bend Coil Coil Price Cut Price
Item # Diameter Diameter (PSI) Burst (PSI) Radius Length (per foot) (per foot)
Tube: oil-resistant synthetic rubber
R13-12 3/4" 1.26" 5,000 20,000 9½" 131'
Reinforcement: four spiral layers of high-
tensile steel wire (R13-12, R13-16); R13-16 1" 1.54" 5,000 20,000 12" 131'
six spiral layers of high-tensile steel wire R13-20 1¼" 1.96" 5,000 20,000 16½" 131'
(R13-20, R13-24, and R13-32)
R13-24 1½" 2.26" 5,000 20,000 20" 131'
Cover: oil and abrasion-resistant
synthetic rubber R13-32 2" 2.8" 5,000 20,000 25" 131'
Temperature range: -40° to +250° F
Recommended hose fi ttings:
W Series Hose Fittings: page 21
(sizes -12 and -16 only)
JJ Series Hose Fittings: page 32
(sizes -20 through -32)
