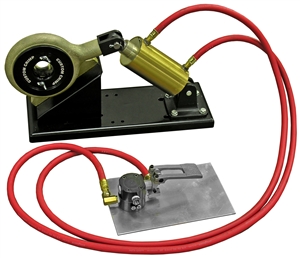

670T Ferrule Vise Air-Powered Hose Crimper
The Ferrule Vise Crimper is an ideal solution for light duty repetitive hose crimping. With a wide variety of available dies (not included) in either ribbed or straight configuration, these crimpers will consistently produce good looking accurate crimps time after time. Positive over center action assures a consistent and repeatable crimp diameter with no need for adjustment. The rugged cast iron frame and base is designed to provide years of dependable service and both the 670T and the 660T models have mounting holes which permit them to be securly mounted to a workbench.
Power requirement: 80 psi compressed air
Also available: 660T Ferrule Vise Manual Hose Crimper
Ribbed and plain dies sold separately.
| Brass Ferrule |
Ferrule ID |
Ribbed Die |
Plain Die |
|
BFL380 |
0.380" |
|
|
| BFL400 |
0.400" |
|
|
| BFL410 |
0.410" |
|
|
| BFL450 |
0.450" |
|
|
| BFM478 |
0.478" |
|
|
| BFL500 |
0.500" |
|
|
| BFM500 |
0.500" |
|
|
| BFL525 |
0.525" |
|
|
|
BFM525 |
0.525" |
|
|
| BFM531 |
0.531" |
|
|
| BFL548 |
0.548" |
|
|
| BFM562 |
0.561" |
|
|
| BFL564 |
0.564" |
|
|
| BFL575 |
0.575" |
|
|
| BFM593 |
0.593" |
|
|
| BFL600 |
0.600" |
|
|
| BFL625 |
0.625" |
|
|
| BFM625 |
0.625" |
|
|
| BFL650 |
0.650" |
|
|
| BFM656 |
0.656" |
|
|
| BFL675 |
0.675" |
|
|
| BFM687 |
0.687" |
|
|
| BFM718 |
0.718" |
|
|
| BFM718B |
0.718" |
|
|
| BFL725 |
0.725" |
|
|
| BFL750 |
0.750" |
|
|
| BFM750 |
0.750" |
|
|
| BFM750B |
0.750" |
|
|
| BFL775 |
0.775" |
|
|
| BFM781 |
0.781" |
|
|
| BFM781B |
0.781" |
|
|
| BF800 |
0.800" |
|
|
| BFM812 |
0.812" |
|
|
| BF825 |
0.825" |
|
|
| BF850 |
0.850" |
|
|
| BFW875 |
0.875" |
|
|
| BFW900 |
0.900" |
|
|
| BFW975 |
0.975" |
|
|
| BFW1025 |
1.025" |
|
|
| BFMW1050 |
1.050" |
|
|
| BFMW1100 |
1.100" |
|
|
| BFMW1150 |
1.150" |
|
|
| BFW1175 |
1.175" |
|
|
| BFMW1225 |
1.225" |
|
|
| BFMW1275 |
1.275" |
|
|
| BFMW1400 |
1.400" |
|
|
| BFMW1500 |
1.500" |
none |
|
