  Home > Quick Disconnects > 4100 Series, Wet Line Couplings (Wingnut) >

  4100-SET

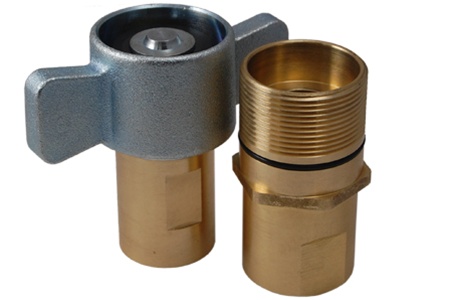

4100 Series Wet Line Couplings

Set includes one male and one female






Wet Line Couplings
Wingnut Quick Disconnects, complete sets

Recommended for oil well equipment, sand and salt spreaders, dump and demolition trailers, live bed trailers and other heavy duty applications.

  • Connect and disconnect under pressure
  • Brass bodies with steel valving components
  • Heavy duty steel wingnut
  • Buna N rubber seals

Interchanges with Parker, 6100 Series, Aeroquip 5100 Series, Snap-Tite 78 Series, Dixon W Series and Faster FB Series. More detailed specifications below the price table.

Item# Item Name Catalog
Price
Web
Price
Qty Add
4100SET-04B 4100SET-04B | Set of 1/4" Wet Line Couplings with 1/8" NPTF
$143.63
$135.01
4100SET-06B 4100SET-06B | Set of 3/8" Wet Line Couplings with 1/4" NPTF
$97.84
$91.97
4100SET-08B 4100SET-08B | Set of 1/2" Wet Line Couplings with 3/8" NPTF
$66.26
$62.28
4100SET-10B 4100SET-10B | Set of 5/8" Wet Line Couplings with 1/2" NPTF
$80.26
$75.44
4100SET-12B 4100SET-12B | Set of 3/4" Wet Line Couplings with 3/4" NPTF
$86.21
$81.04
4100SET-16B 4100SET-16B | Set of 1" Wet Line Couplings with 1" NPTF
$60.00
$56.40
4100SET-20B 4100SET-20B | Set of 1-1/4" Wet Line Couplings with 1-1/4" NPTF
$193.15
$181.56
4100SET-24B 4100SET-24B | Set of 1-1/2" Wet Line Couplings with 1-1/2" NPTF
$268.41
$252.31
Check the items you wish to purchase, then click


Technical Specifications:



Coupler
Body Size
(Nominal)
Thread
Size
(Nominal)
Female
Coupler
Item #
Parker
Interchange
(Female)
Male
Coupler
Item #
Parker
Interchange
(Male)
Working
Pressure
(psi)
Flow
Rate
(gpm)
1/4" 1/8" NPTF 4100-S5-04B   4100-S2-04B   3,000 4
3/8" 1/4" NPTF 4100-S5-06B   4100-S2-06B   3,000 7
1/2" 3/8" NPTF 4100-S5-08B   4100-S2-08B   3,000 7
5/8" 1/2" NPTF 4100-S5-10B   4100-S2-10B   3,000 18
3/4" 3/4" NPTF 4100-S5-12B 6125-12 4100-S2-12B 6105-12 3,000 35
1" 1" NPTF 4100-S5-16B 6125-16 4100-S2-16B 6105-16 3,000 55
1-1/4" 1-1/4" NPTF 4100-S5-20B 6125-20 4100-S2-20B 6105-20 2,750* 80
1-1/2" 1-1/2" NPTF 4100-S5-24B 6125-24 4100-S2-24B 6105-24 2,500** 110

Also interchanges with Aroquip 5100 Series, Snap-Tite 78 Series, Dixon W Series and Faster FB Series.

* 1-1/4" male coupler holds a maximum 2,500 psi when not connected.
** 1-1/2" male coupler holds a maximum 2,000 psi when not connected.
